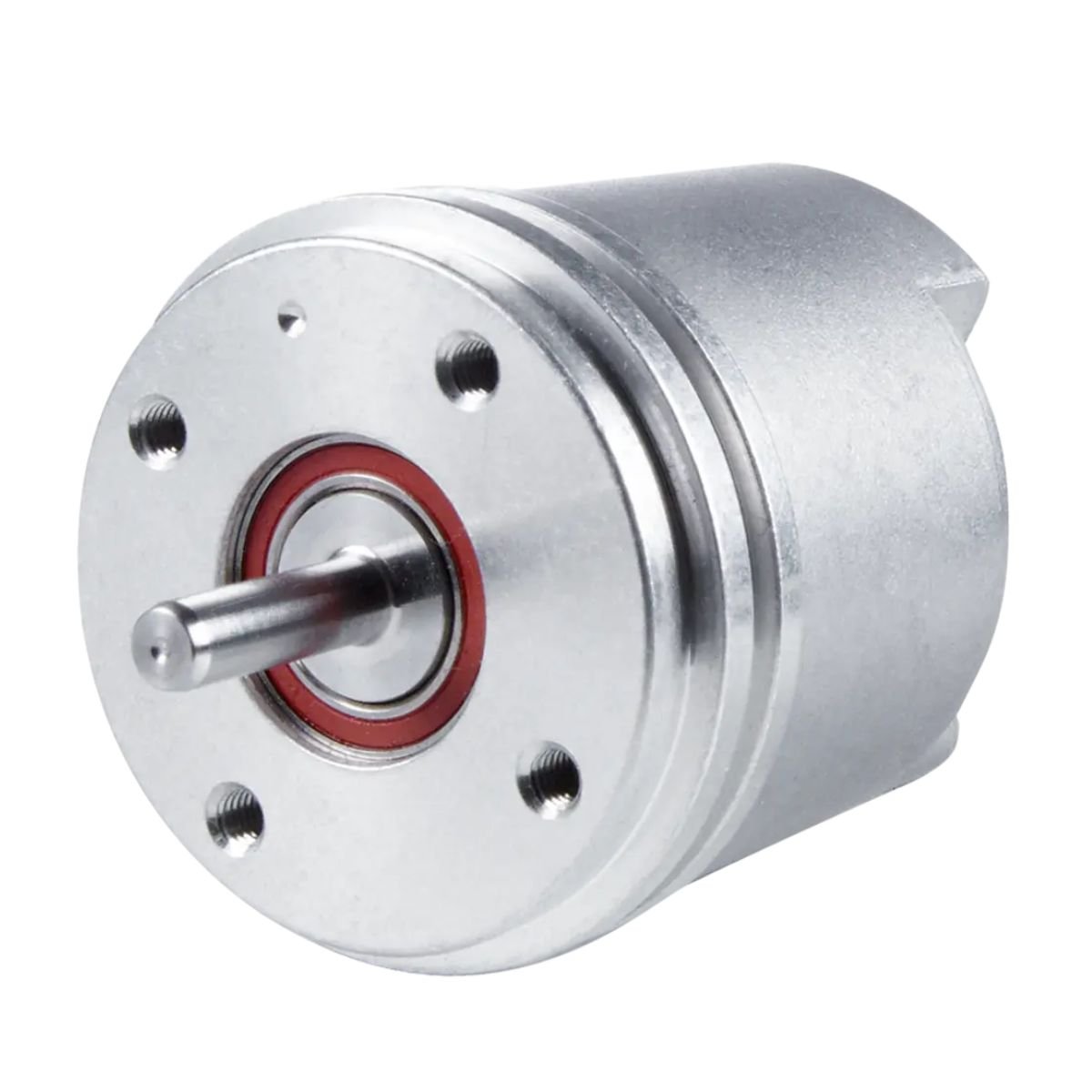

ROD Heidenhain Encoder

The HEIDENHAIN ROD is a high-precision incremental rotary encoder with an integral bearing, engineered for reliable position and speed feedback in demanding industrial automation applications. Featuring a compact 35 mm housing, solid shaft design, and synchro flange mounting, it delivers exceptional positioning accuracy while maintaining long-term durability. Its compensatory metal bellows coupling minimizes mechanical stress caused by shaft misalignment, ensuring stable performance and extended service life. The ROD 1000 is ideal for machine tools, robotics, electric motors, printing machines, textile machinery, and other precision motion control systems.

Key Features

• High-precision incremental rotary encoder with integral bearing
• Positioning accuracy of up to ±18 arc seconds
• Compact 35 mm housing for space-constrained installations
• Solid shaft with synchro flange for secure mounting
• Metal bellows coupling compensates for axial, radial, and angular misalignment
• Supports 1 Vpp, TTL, and HTLs output interfaces for broad controller compatibility
• Maximum operating temperature of 100°C for demanding industrial environments
• Flexible mounting options using fixing clamps, synchro flange, or adapter flange
• Rugged construction designed for high reliability and long service life
• Suitable for machine tools, robotics, motors, textile machinery, printing equipment, and industrial automation systems.
