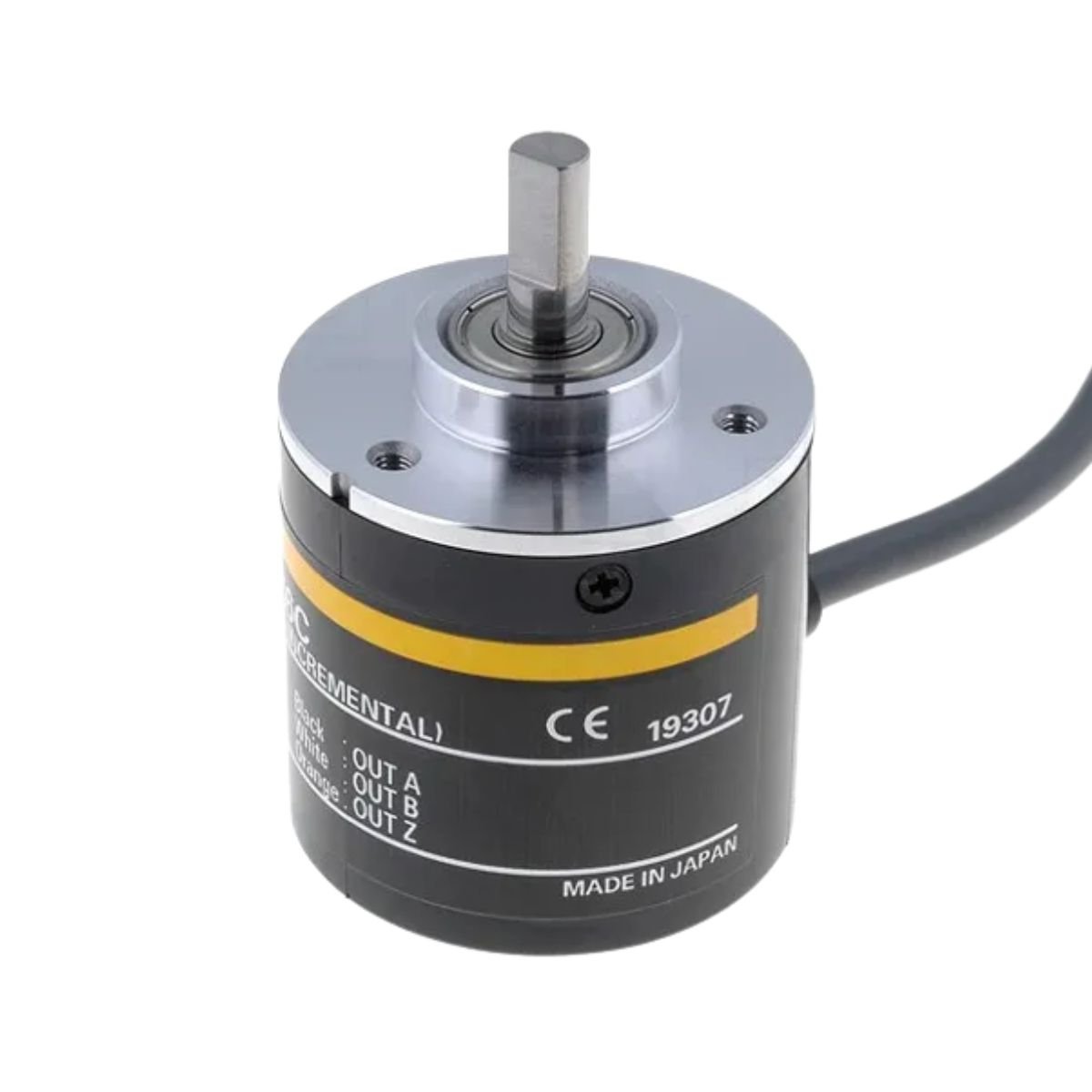

E6B2-CWZ6C Omron Encoder

The OMRON E6B2-CWZ6C is a high-precision incremental rotary encoder designed for accurate position, speed, and motion feedback in industrial automation systems. Featuring a resolution of 1800 pulses per revolution (PPR), this encoder delivers reliable and consistent performance for applications such as CNC machines, conveyors, packaging equipment, robotics, and motion control systems. Its compact 40 mm housing, NPN open-collector output, 5–24 VDC operating voltage, and rugged construction ensure dependable operation even in demanding industrial environments.

Key Features

• High Resolution: 1800 pulses per revolution (PPR) for precise position and speed detection.
• Wide Operating Voltage: Supports 5–24 VDC, making it compatible with a broad range of industrial control systems.
• NPN Open-Collector Output: Provides stable signal transmission for PLCs, controllers, and automation equipment.
• Compact Design: Ø40 × 39 mm body with a 6 mm solid shaft for easy integration into space-constrained installations.
• Reliable Performance: Maximum response frequency of 100 kHz and maximum rotational speed of 6,000 RPM for high-speed applications.
• Industrial Durability: Operates in temperatures from -10°C to +70°C with an IP50 protection rating for dependable use in industrial environments.
• A, B & Z Output Signals: Delivers accurate incremental feedback for precise motion control and positioning.
• 0.5 m Pre-wired Cable: Simplifies installation and reduces setup time.
