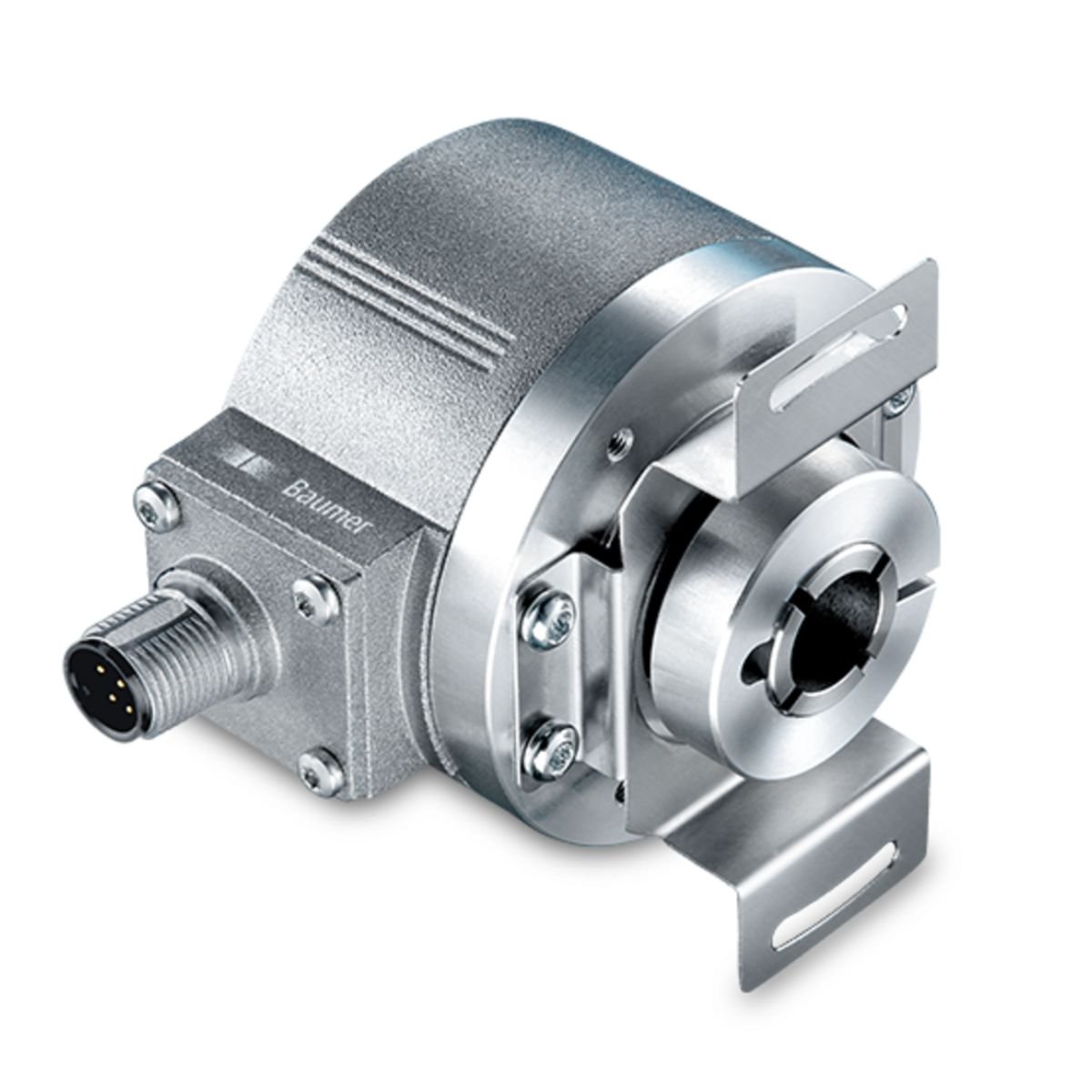

EIL580 Baumer Encoder

The Baumer EIL580-T is a high-performance incremental encoder designed for precise motion feedback in demanding industrial automation applications. Featuring advanced optical sensing technology and a rugged 58 mm housing with a through hollow shaft, it delivers highly accurate position and speed measurement while maintaining excellent reliability in harsh operating environments. With support for TTL and HTL output signals, resolutions up to 5,000 pulses per revolution, and protection ratings up to IP67, the EIL580-T is an ideal solution for motors, conveyors, packaging machinery, material handling systems, and factory automation equipment.

Key Features

• Precise optical sensing for highly accurate speed and position feedback
• Through hollow shaft design (Ø8–15 mm) for easy installation
• High resolution with 100 to 5,000 pulses per revolution
• Supports TTL/RS422 and HTL (Push-Pull) output signals
• Rugged 58 mm industrial housing with durable aluminium construction
• Protection rating up to IP67 for reliable operation in harsh environments
• Excellent resistance to shock (250 g) and vibration (30 g)
• Wide operating temperature range from -40°C to +85°C
• Flexible connection options including cable, M12, and M23 connectors
• Suitable for industrial automation, motor control, conveyors, packaging, and machine-building applications.
