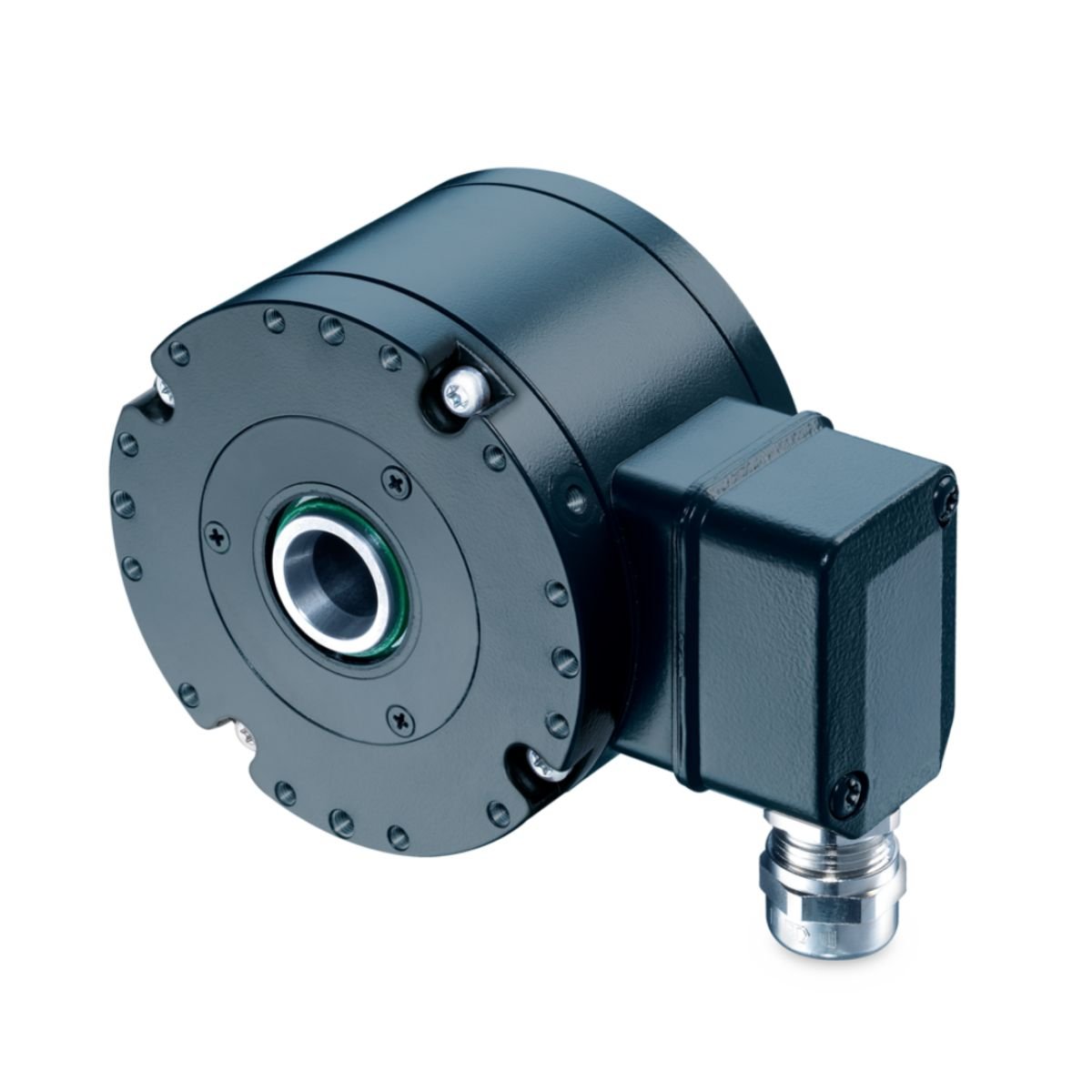

HOG 86 Baumer Encoder

The Baumer HOG 86 is a robust HeavyDuty incremental encoder engineered for reliable speed and position feedback in demanding industrial environments. Designed with a durable double-bearing construction, high shaft load capacity, and excellent resistance to shock, vibration, and harsh operating conditions, it delivers precise performance even in continuous 24/7 operation. With optical sensing technology, support for up to 10,000 rpm, and multiple output options, the HOG 86 is ideal for applications such as cranes, rolling mills, wind turbines, generators, and heavy machinery.

Key Features

• HeavyDuty incremental encoder for demanding industrial applications
• Rugged double-bearing design for extended service life
• Supports operating speeds up to 10,000 rpm
• High shaft load capacity: 450 N radial and 350 N axial
• Available with 500 to 5000 pulses per revolution (PPR)
• Optical sensing technology for accurate and reliable signal output
• HTL-P and TTL/RS422 output stage options
• IP66-rated housing for protection against dust and water ingress
• Wide operating temperature range from -40°C to +100°C
• Shaft insulation up to 2.8 kV for enhanced electrical protection
• Resistant to vibration (20 g), shock (250 g), and corrosive environments
• Available with terminal box, M23 connector, or cable connection options
• Optional ATEX version for hazardous gas and dust environments
• CE and UL certified for industrial compliance
