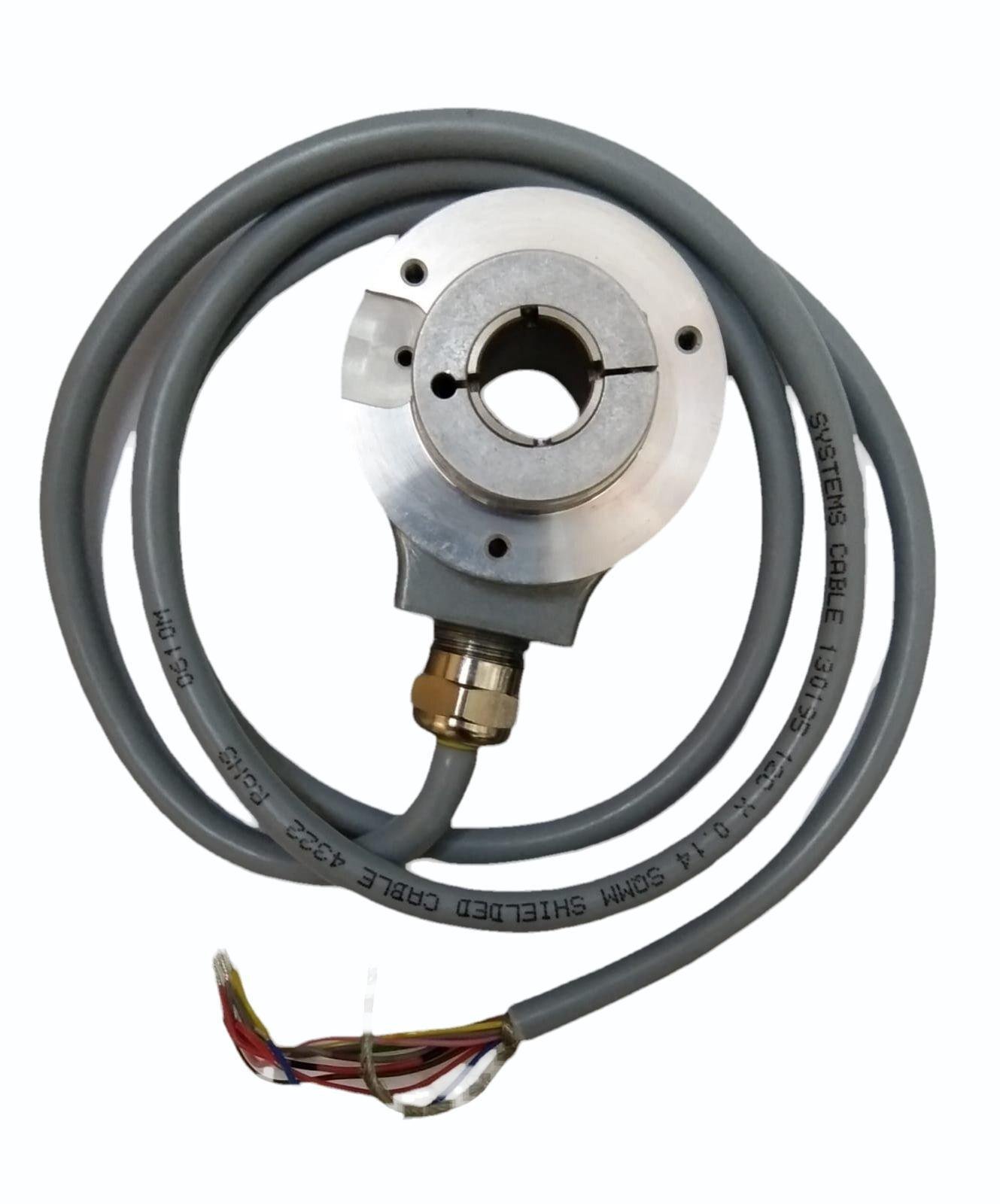

8.KIH50.8344.4096

The Kubler 8.KIH50.8344.4096 is a high-performance incremental rotary encoder, designed to deliver accurate speed and position feedback, especially to printing machines. Featuring a robust Euro flange design with an 10 mm hollow shaft, this optical encoder provides 4096 pulses per revolution (PPR) for precise motion control.
Its RS422/ 5 VDC, durable bearing construction, and wide operating temperature range make it an excellent choice for Printing machines, CNC machinery, packaging equipment, conveyors, motors, and other industrial motion control systems requiring reliable and consistent performance.

Key Features

• Model: Kubler 8.KIH50.8344.4096 (Sendix KIH50 Series)
• Encoder Type: Incremental optical rotary encoder
• Resolution: 4096 pulses per revolution (4096 PPR)
• Mounting: Clamping flange with 10 mm shaft
• Output Type: RS422 electrical output
• Supply Voltage: 5 VDC
• Connection: radial M23 connector, 12-pin
• Operating Temperature: -40°C to +85°C
• Reliable Optical Sensing: Delivers accurate speed and position feedback
• Industrial-Grade Construction: Equipped with precision bearings for long service life in demanding environments
• Certifications: CE, UL, and EX approved for industrial applications
