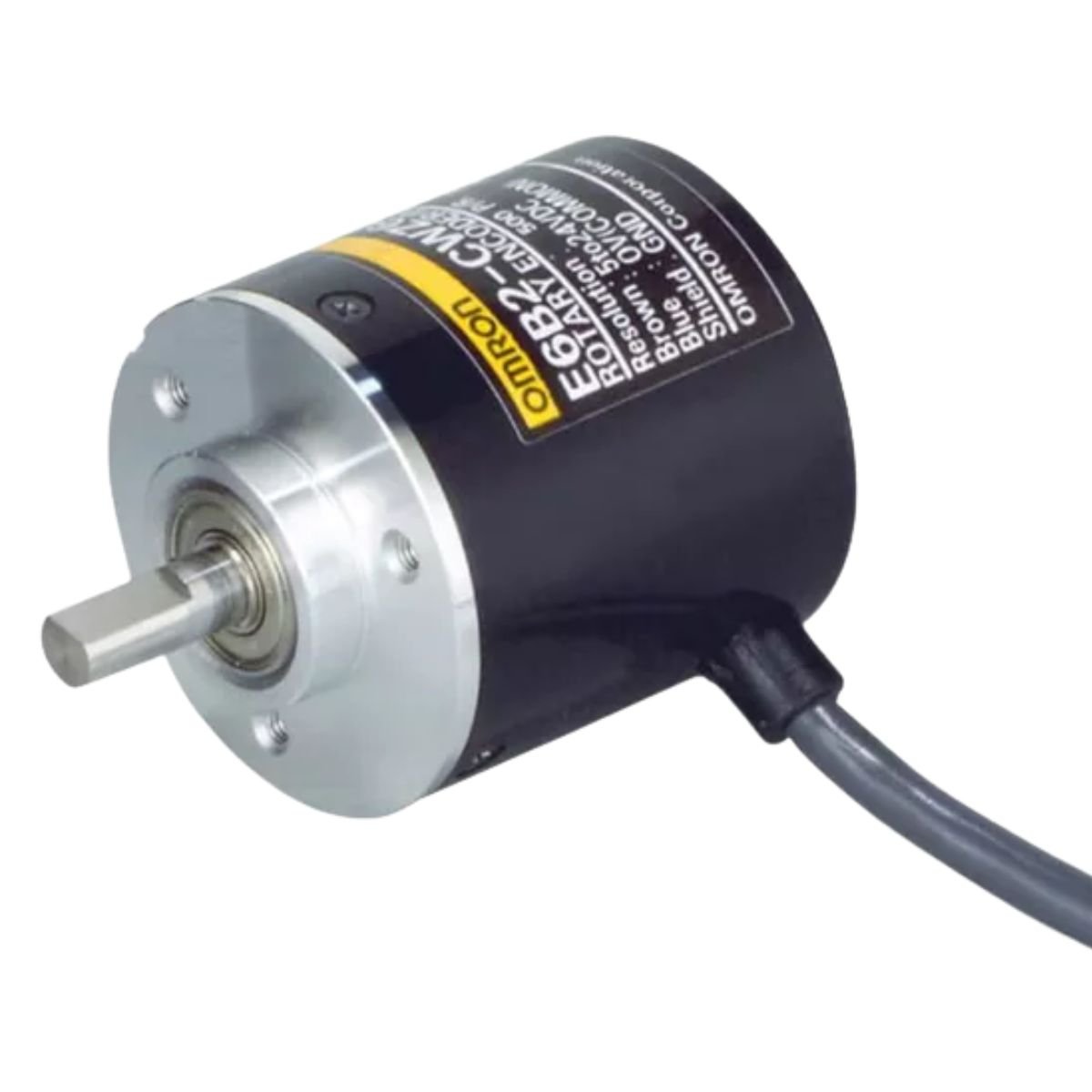

E6B2-CWZ1X Omron Encoder

The OMRON E6B2-CWZ1X is a high-performance incremental rotary encoder designed for accurate position, speed, and motion detection in industrial automation systems. Featuring a 1024 pulses-per-revolution (PPR) resolution and a reliable RS-422 line driver output, it delivers stable signal transmission even in electrically noisy environments. With a compact 40 mm housing, 6 mm solid shaft, 5 VDC operation, and a 0.5 m pre-wired cable, this encoder is ideal for CNC machines, robotics, conveyors, packaging equipment, and motion control applications requiring precise rotational feedback.

Key Features

• High-resolution 1024 PPR for precise position and speed feedback.
• RS-422 line driver output ensures reliable, noise-resistant signal transmission.
• Compact 40 mm diameter housing for easy installation in space-constrained applications.
• 6 mm solid shaft offers stable and accurate rotational performance.
• Operates on 5 VDC (4.8–5.2 V) power supply.
• Provides A, B, and Z output signals for accurate motion control and direction sensing.
• 0.5 m pre-wired cable simplifies installation and wiring.
• IP50 protection rating suitable for industrial indoor environments.
• Supports operating temperatures from -10°C to +70°C for dependable performance in demanding conditions.
• Ideal for CNC machinery, robotics, conveyor systems, packaging machines, and factory automation.
