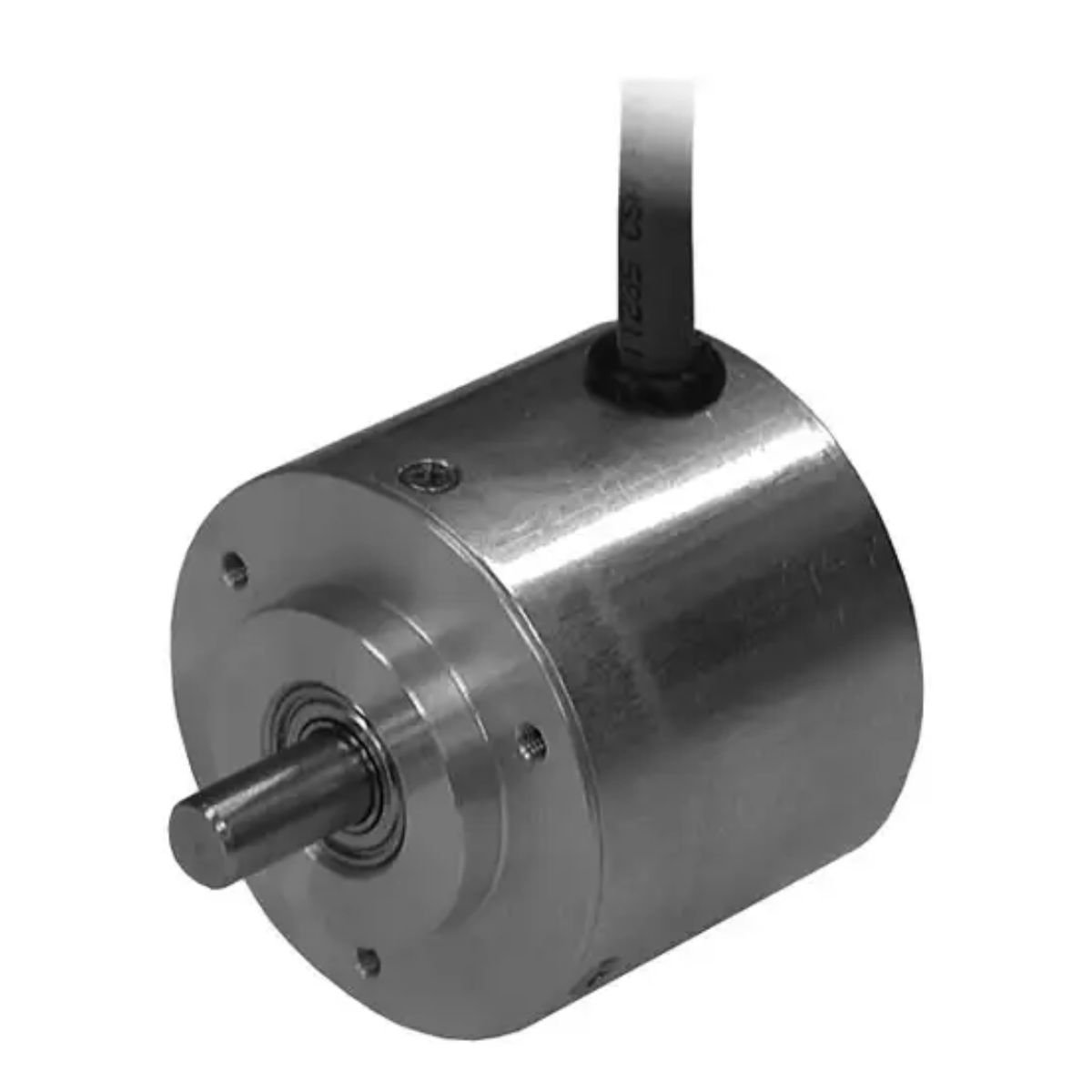

TVI50 Pepperl+Fuchs Encoder

The TVI50 from Pepperl+Fuchs is a compact, industrial-grade incremental rotary encoder designed for accurate speed and position feedback in automation and motion control applications. Featuring a rugged Ø50 mm aluminum housing with a solid shaft design, the TVI50 delivers reliable performance even in demanding industrial environments. It supports resolutions of up to 1024 pulses per revolution (PPR), operates on 4.75–30 V DC (or **5 V DC for RS-422 versions), and provides dependable signal output for PLCs, drives, and control systems. Its robust construction, high rotational speed capability, and compact footprint make it a cost-effective solution for conveyors, packaging machines, machine tools, and general factory automation.

Key Features

• Compact Ø50 mm solid shaft incremental rotary encoder
• Resolution up to 1024 pulses per revolution (PPR)
• Operating voltage: 4.75–30 V DC (5 V DC for RS-422 versions)
• Available with Push-Pull or RS-422 incremental outputs
• Maximum output frequency of 100 kHz
• Maximum rotational speed of 6000 RPM
• Rugged aluminum housing with IP40/IP54 protection options
• High mechanical durability with stainless steel shaft
• Suitable for industrial automation, motion control, conveyors, and packaging machinery
• Reliable Opto-ASIC technology for precise and stable position sensing
